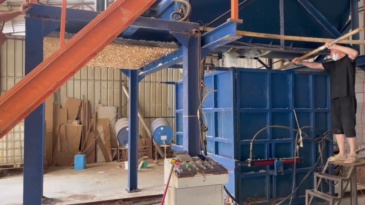

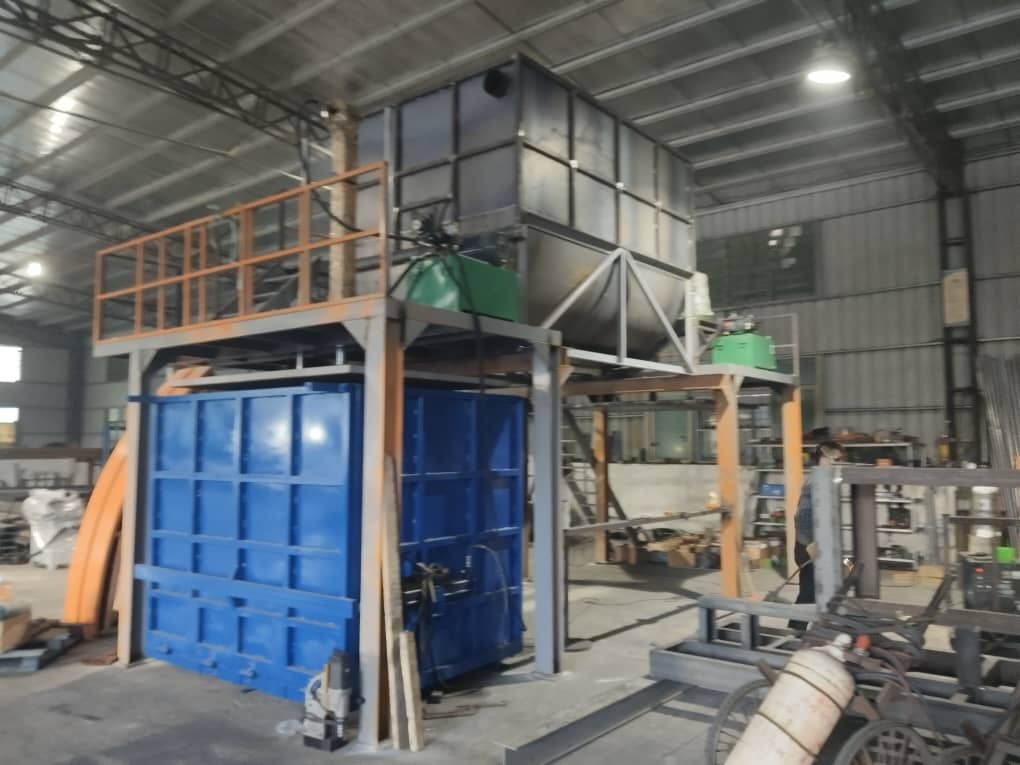

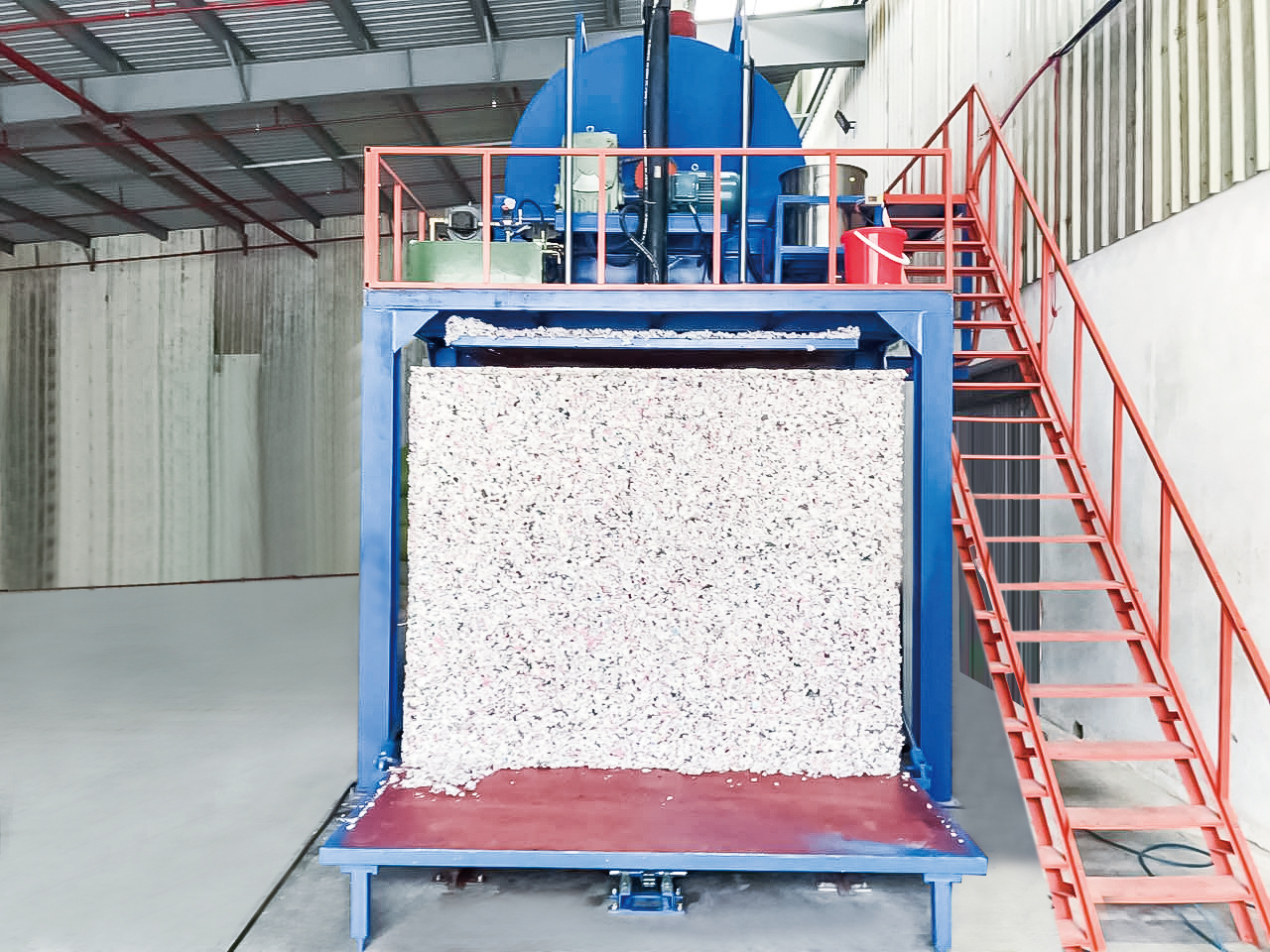

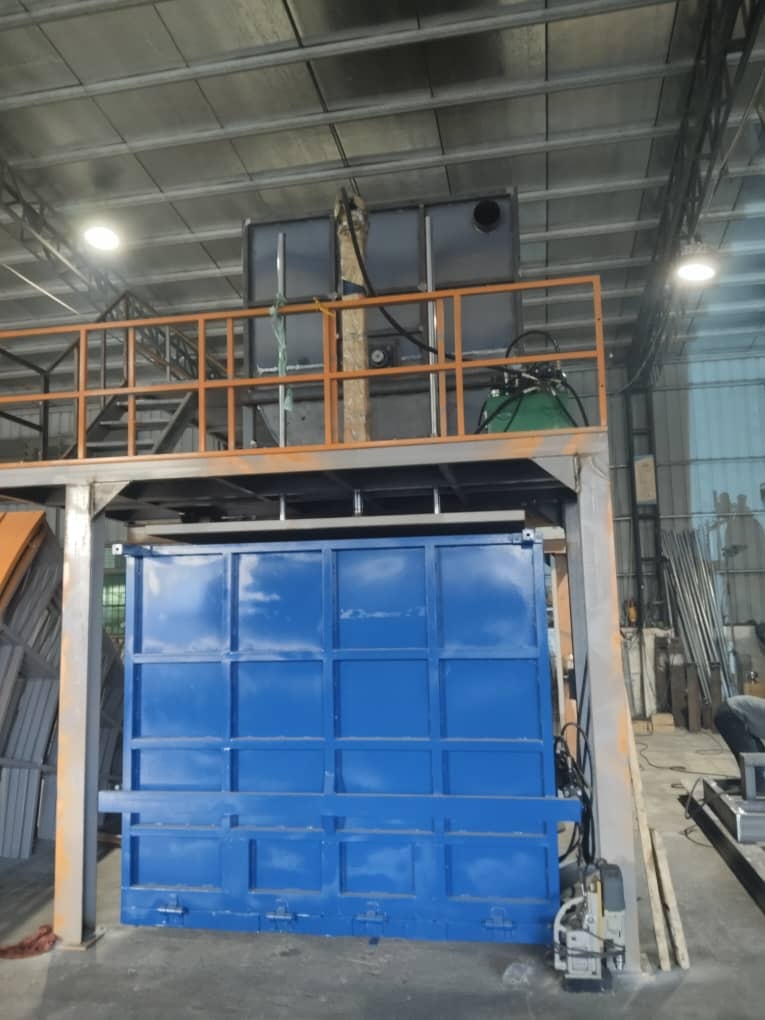

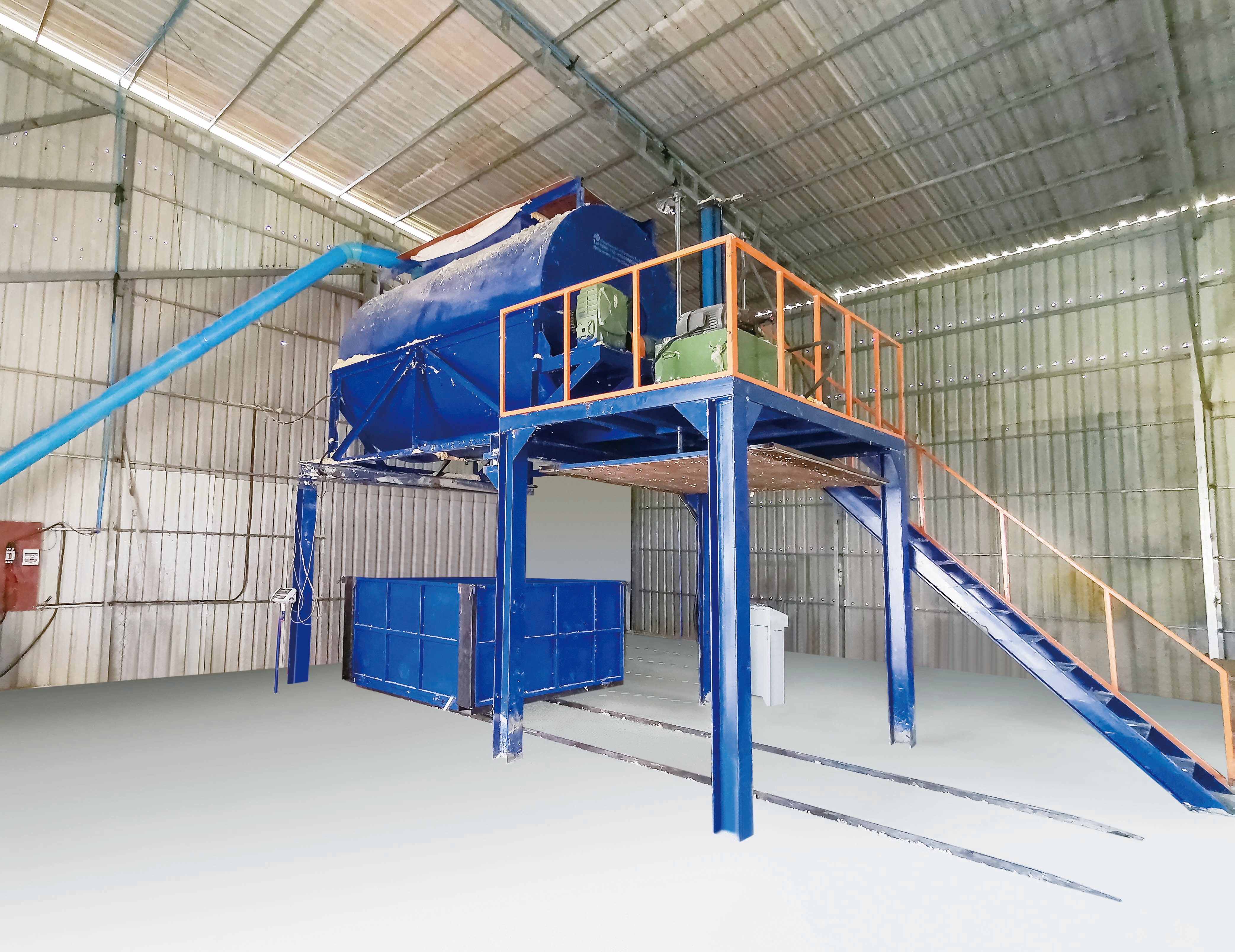

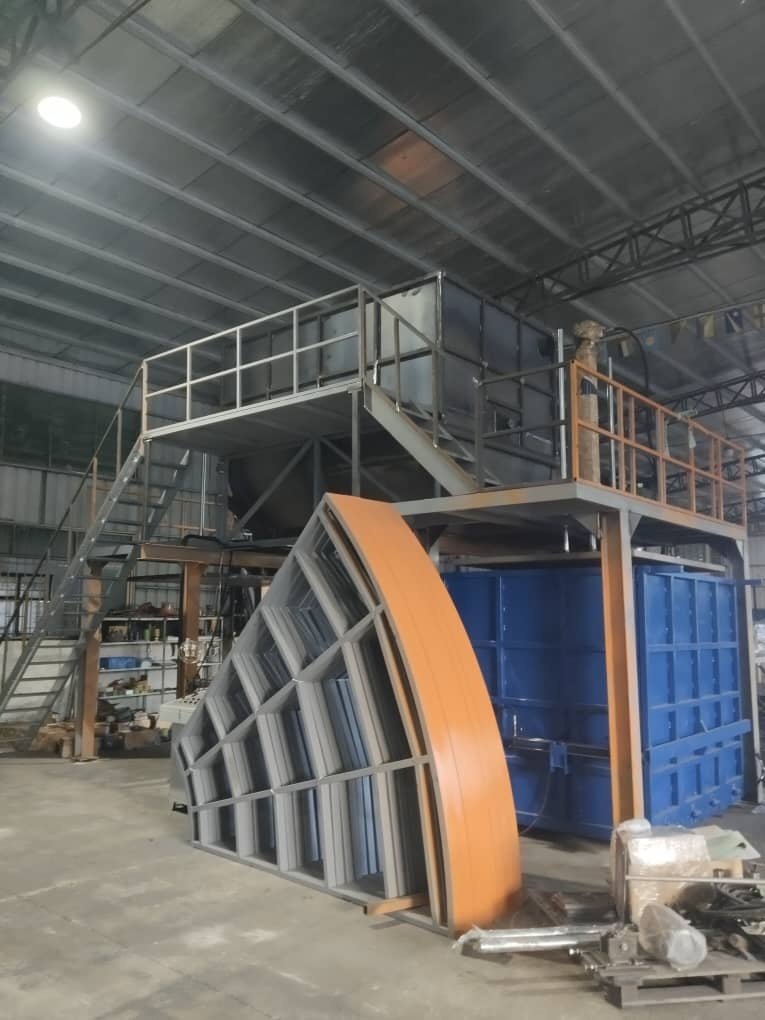

Re-Bonding Foam Machine is mainly used for the stirring of the crushed foam with glue, and through the Foaming mould, the regenerated foam of the required density is compressed through the hydraulic system.
The machine is a full-set production line with functions of stirring, mixing, and pressure forming, offering high durability and stability during the operation.
This steam-free (purely electric) manual model utilizes standard manual moulding tanks and a robust hydraulic press. It is a highly cost-effective and energy-saving solution for manufacturers looking to produce reliable re-bonded foam without the need for an industrial steam boiler system.
| Parameter | IF-FZS (Steam-Free / Manual) |
|---|---|
| Mixing Box Cubage | 10 m³ |
| Mixing Speed | 40 r/min |
| Motor Power | 11 kW |
| Moulding Tank Quantity | Includes 2 manual moulding tanks |
| Moulding Size | L2050 mm x W1550 mm x H1000 mm |
| Max Working Pressure of Oil Cylinder | 12,000 kg |
| Mixing Tank Material | 6mm thick A3 steel plate |
| Support Frame Structure | 150# No. 1 H-beam steel column |
| Material Inlet Port | 8-inch direct feed port |
